Overview

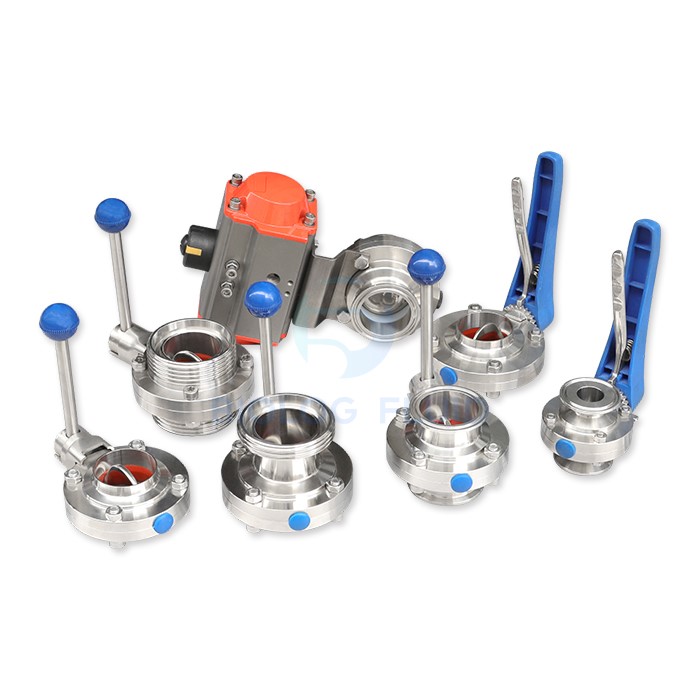

This type of valve series is a sanitary automatic or manual butterfly valve series, which is widely used in stainless steel piping systems to regulate the flow of medium.

Material

Steel parts: SUS304, SUS316L

Sealing ring: silicone rubber (VMQ), fluorine rubber (FPM), ethylene propylene diene monomer (EPDM)

Application

The product is widely used in the food, beverage, beer, dairy, and other food industries, as well as in the pharmaceutical and chemical industries.

Performance And Merit

Application

The product is widely used in the food, beverage, beer, dairy, and other food industries, as well as in the pharmaceutical and chemical industries.

Overview

Application

Sanitary grade flexible joints are specifically designed for industrial fields such as dairy products, food, pharmaceuticals, beer, cosmetics, etc

Overview

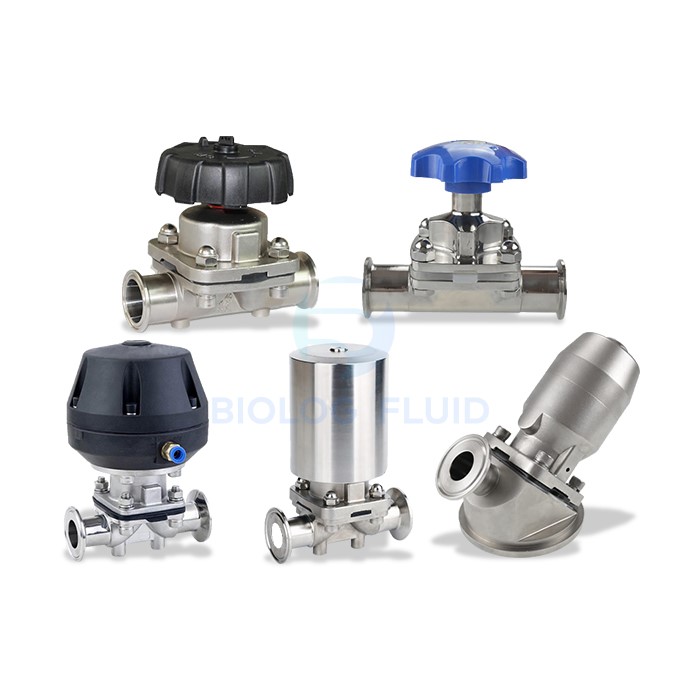

Sanitary diaphragm valves are remotely controlled by a driving device or manually operated through a handle. There are three standards for driving devices: normally closed, normally open, and pneumatic. It has the advantages of simple structure, beautiful appearance, quick disassembly and assembly, flexible operation, low fluid resistance, and safe and reliable use.

Application

The product is suitable for controlling water, gas, oil, and corrosive media in industries such as chemical, petroleum, metallurgy, water heating, food, and pharmaceuticals.

The existing specifications of BIOLOG FLUID's diaphragm valve series include cartridge diaphragm valves, welded diaphragm valves, T-shaped three-way diaphragm valves, U-shaped three-way diaphragm valves, and other series of diaphragm valves.

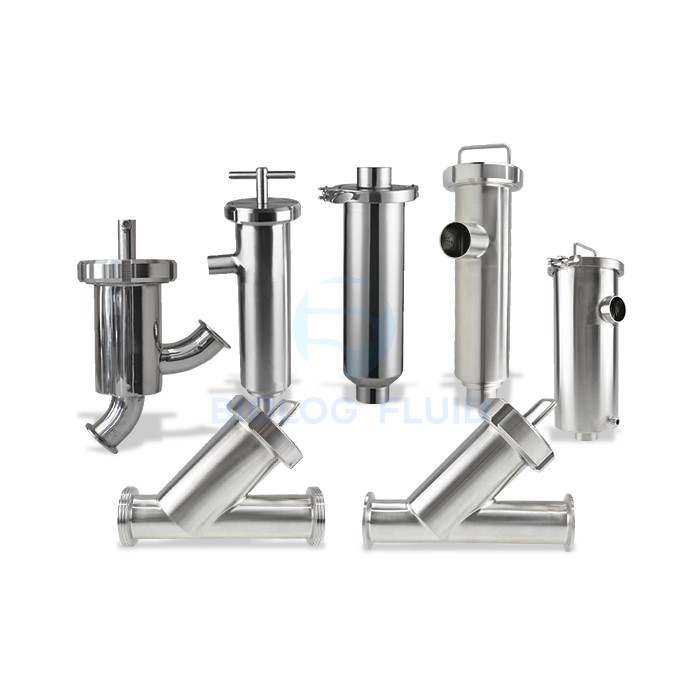

Design And Features

1. There are several structures;

2. There is no need to disassemble the filter to clean the screen;

3. Angle filter: The inlet and outlet pass through the right corner.

4. Y-type filter: the material enters and exits in the same direction.

5. Disassemble the filter to clean the screen;

6. Straight through the filter: the material enters and exits in the same direction.

Application

Filters have a wide range of applications in food processing, cosmetics, and some chemical and pharmaceutical industries.

Its design is hygienic and suitable for filtering particles that may cause damage to pumps and other equipment.

Application

Cleaner series products are mainly used in food processing, beverages, beer and pharmaceutical industries, etc. On the tank equipment, the inside of the tank is strongly sprayed and cleaned.

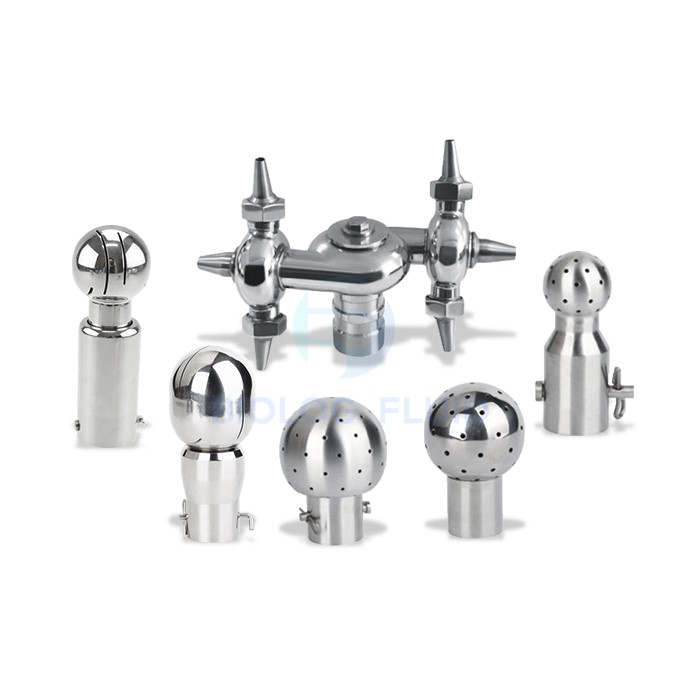

The Cleaning Ball Is Divided Into Three Series Of Products

1. Fixed cleaning ball: 360° full spray, 180° spray, spray aperture 2.5mm

2. Rotating cleaning ball: the ball is oval and round, and the spray nozzle is flat groove type

3. Rotating cleaning ball: Multi-position jet type, all jet nozzles will be jetted while working.

Overview

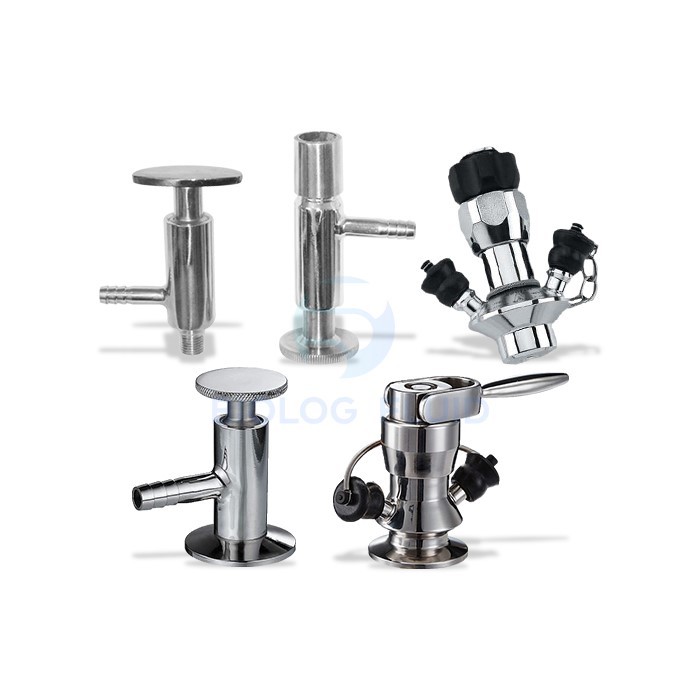

1. The aseptic sampling valve has two designs with a handle lift type and a handwheel track rotation. The aseptic sampling valve opens the sampling valve and closes the sterilization.

2. Take the style liquid level valve and apply the container to display the container capacity and sample at the same time.

3. The yogurt sampling valve is designed with a sampling valve with the valve seat open to the inside of the equipment. The valve is opened by pressing the handle by hand, and the valve is automatically closed when the handle is released.

4. The design of complete drainage (liquid) prevents the material from staying inside the valve. And it avoids accidental opening or leakage of the valve due to overpressure in the pipeline.

Application

It is widely used for sampling from tanks or pipeline systems under aseptic conditions, and can be sterilized before and after each sampling.

Advantage

Steam or alcohol can be used for in-situ disinfection of materials directly with diaphragms to seal the sampling. Typical, repeatGood performance to prevent secondary pollution, mass sampling, micro sampling can be used.

Overview

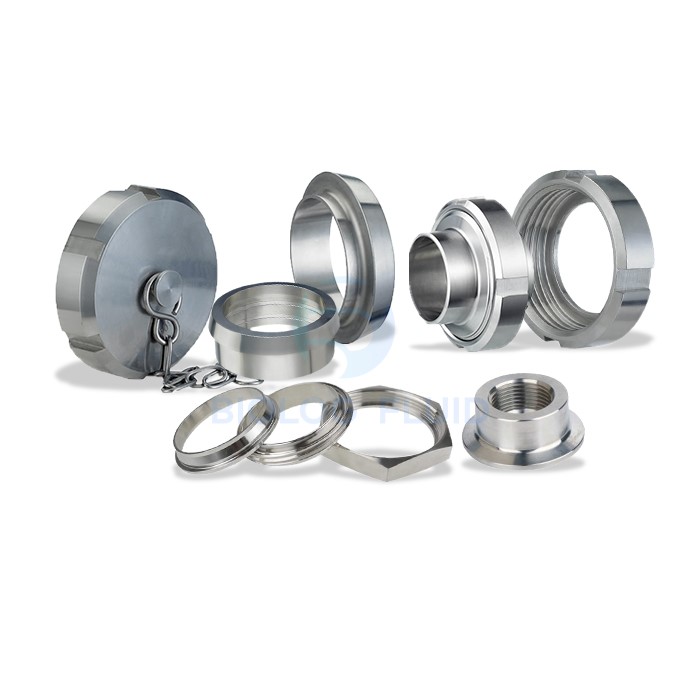

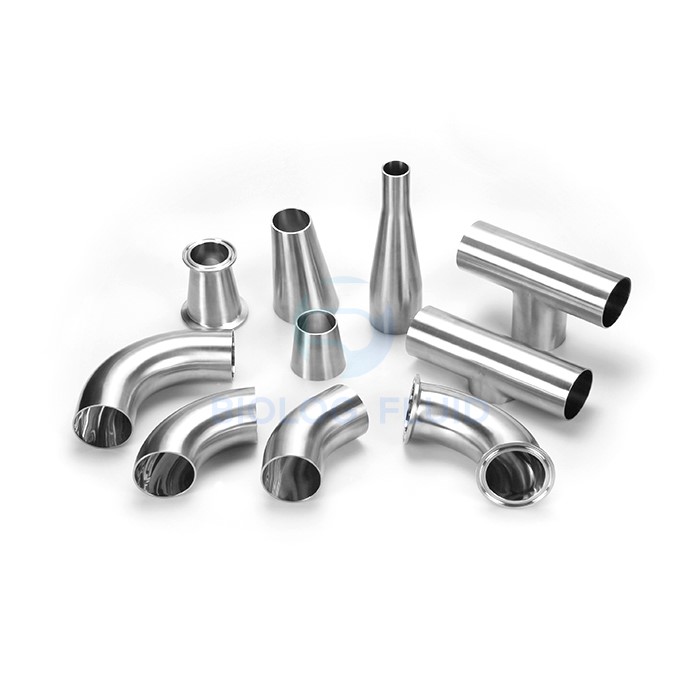

BIOLOG FLUID production: DIN, SMS, 3A, BS, BPE, ISO2851 ISO1127 and other standard sanitary pipe fittings, the product blanks are all cold-pressed into seamless pipes. All products can be processed with different surface roughness according to customer requirements. All metal materials Quality can provide EN10204, 3.1B certificate.

Technical Date

Standard: DIN、3A、SMS、RJT、ISO、IDF、DS、Macon、GB

Size: 1'-6' DN10-DN200 17.2-168.3

Stccl matcrial: 304、304L、316、316L

Surface qualities: 1)180 Grit     2)240 Grit     3)320 Grit     4)420 Grit     5)Unpolished

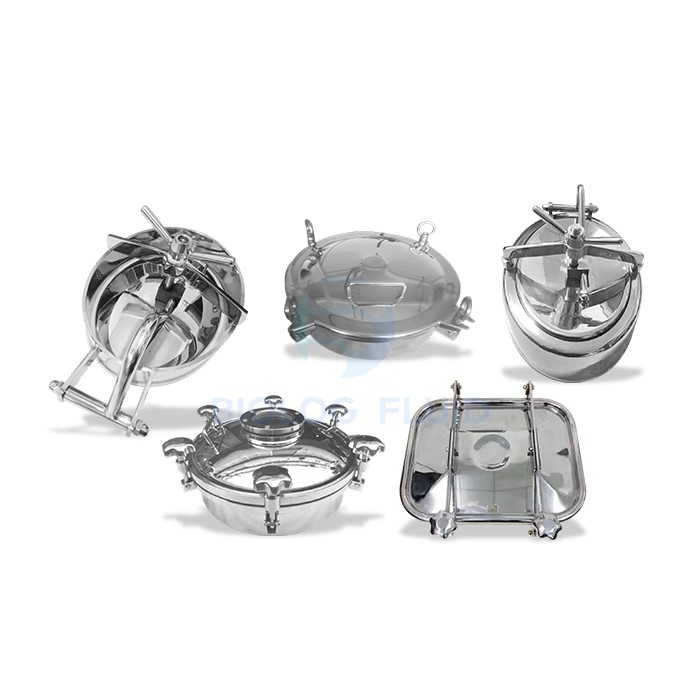

Sanitary grade manhole is a negative pressure manhole made of SUS304/316L

Application

The product is widely used in industrial fields such as dairy products, beer, food, beverages, pharmaceuticals, and biotechnology.

Type

Atmospheric pressure type, pressure type with mirror, handwheel type, rectangular, elliptical, elliptical with mirror, hand hole, square, etc; Specifications, materials, and specifications can be produced according to customer requirements. We can also process non-standard manholes based on customer provided drawings and samples.

Overview

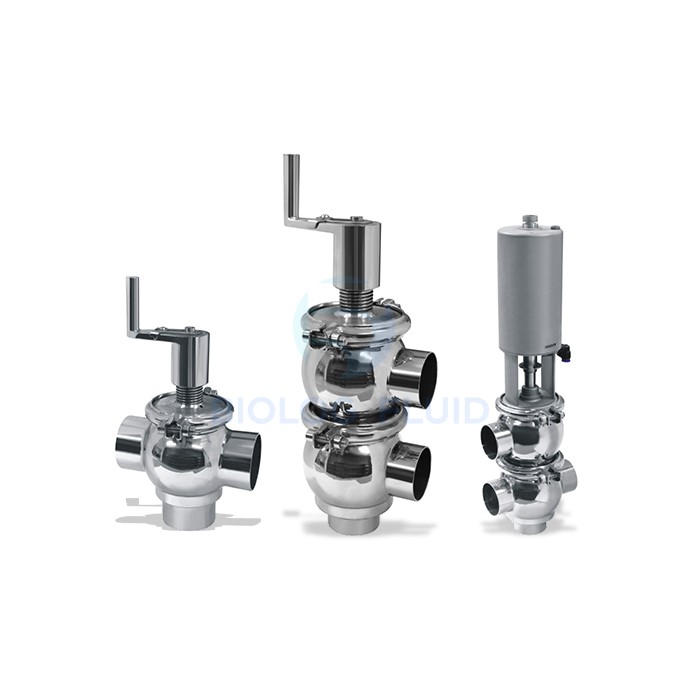

Globe/Reversing Valve is a product developed by the company over many years. It is a modern, highly diversified, and highly adaptable valve that fully meets the aseptic needs of the food industry today and in the future.

Overview

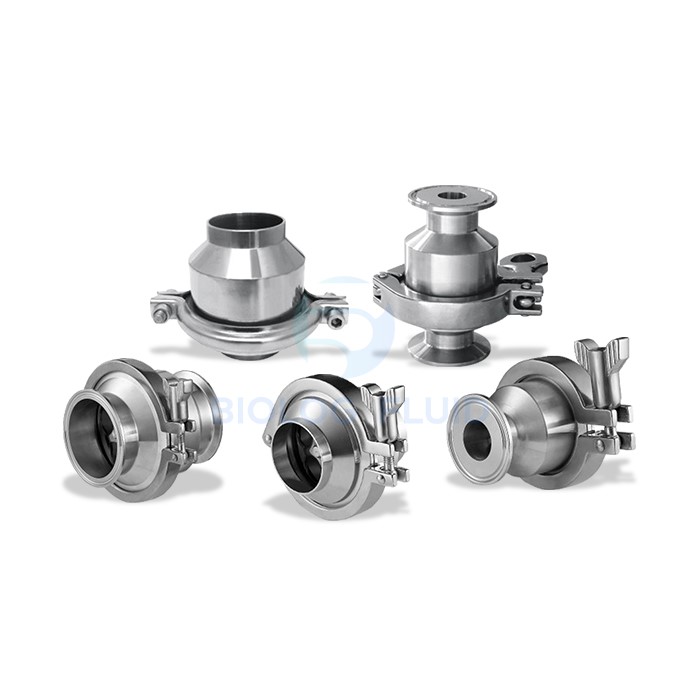

The sanitary check valve is made of imported SUS304 and 316L, and its smooth, seamless, automatic emptying process fluid channel is also very suitable for steam and on-site cleaning needs.

Application

The product is widely used in the food, beverage, beer, dairy, and other food industries, as well as in the pharmaceutical and chemical industries.

Overview

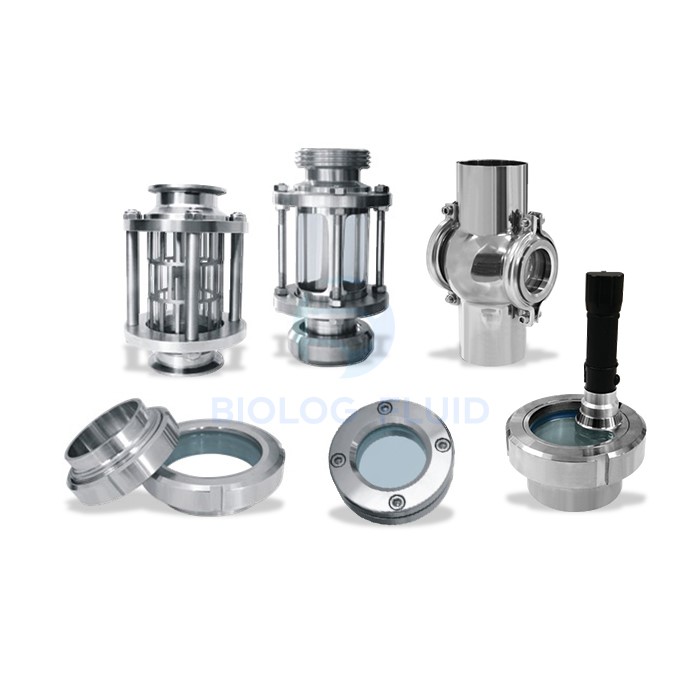

The sight glass is composed of stainless steel structure and glass. In the food, beverage, beer, cosmetics, pharmaceutical and fine chemical industries, it can be clear and clear on the pipelineObserve the material flow accurately.

Instructions

When using, one should choose between normally open or normally closed

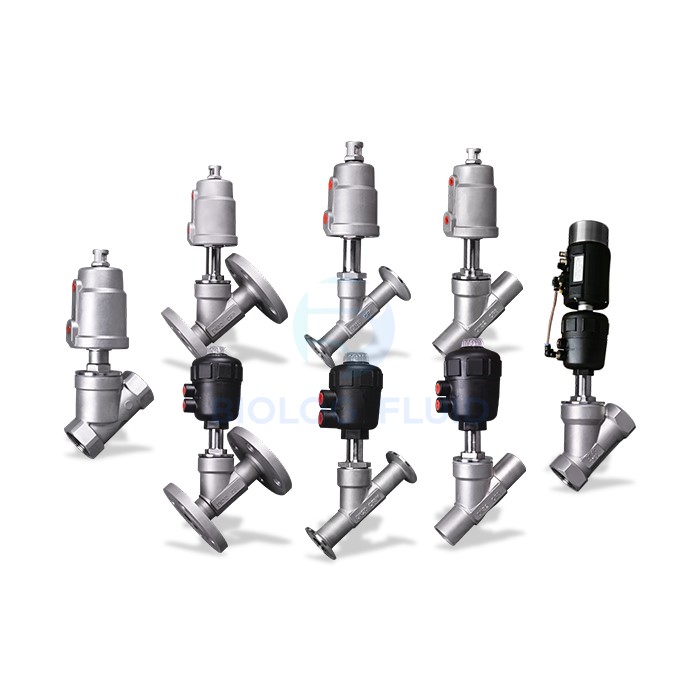

Angle seat valves are widely used for short-term frequent start-up, maintaining flow rate can save space, and have the characteristics of sensitive response and accurate action. When used in conjunction with solenoid valves, pneumatic control can accurately control gas and liquid flow rates. It can meet the requirements of accurate temperature control and liquid dripping.

The wet heat sterilization cabinet should use angle seat valves to control steam volume and temperature accurately.

Features

1. It has valve open or closed position display.

2. External pneumatic pilot can increase service life and is maintenance free.

3. There is a self-adjusting sealing cover between the overflow port and the slider, which can improve the sealing performance.

4. The valve body corner seat structure can achieve high flow (especially compared with ordinary globe valves), with a compact structure and fast response.

Overview

Sanitary pumps are classified based on their usage scenarios, specifically involving the transportation of all products that come into contact with the human body, such as pharmaceuticals, dairy products, beverages, food, cosmetics, food additives, fine chemicals, etc. There are four basic types of sanitary pumps: centrifugal, volumetric, jet, and air transport. Centrifugal pumps apply centrifugal force to generate speed, using rotating impellers to increase speed and push fluid through the outlet valve.

Categories

Sanitary self-priming pump, sanitary centrifugal pump, stainless steel sanitary pump, etc

Material

Material of the liquid passing part: AISI316L stainless steel

Other materials: AISI304L stainless steel

Liquid sealing material: EPDM ethylene propylene rubber
